Item No: TTS-8

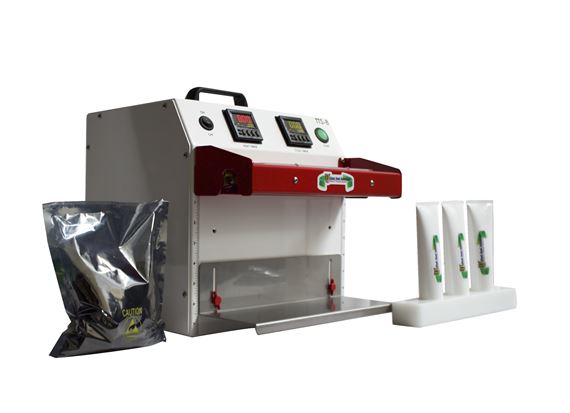

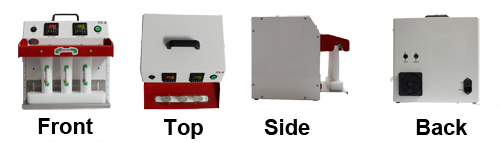

MULTI TUBE AND BAG SEALER 8 INCH


Product Description

MULTI TUBE AND BAG SEALER 8 INCH
Features:

  • 8 Inch Seal Length
  • Dual Digital Timer
  • Dual Cylinder
  • Clevis Pin
  • Delrin Bushing
  • 1/4 Wide Single Seal Element (Dual is available as Option)
  • Stainless Steel Adjustable Shelf with Height Indicator Ruler
  • Only .0015 Seal Jaw Deflection
  • Heavy Duty Powder Coated Steel Frame
  • Adjustable Heat and Cool Time
  • Exhaust Port
  • Air in Port
  • Clean Room Ready
  • Detachable Power Cord
  • Made in the USA
Benefits:
  • Seals up to 3 tubes at a time of 1-3/8" diameter, quantities varies depend on tube diameter
  • Easy to adjust and superior timing control
  • Double force on seal bar
  • Low down maintenance time
  • Quieter operation and no metal shavings
  • Stronger seal and robust appearance
  • Accommodates different tube heights and bags
  • Even pressure across seal length Industrial Grade
  • On increments of 10th of a second
TTS-8
Comes with:
  • One (1)Tube Tray*
  • 1/4 Wide Seal Element or can choose 1/8" or 3/16" 1 Element Kit**
*Tube Sample or Measurement are required for Fabrication of Tube Tray
** Element Kit includes 1 Heater Element, 2 Strips of 2" Wide X 6Mil PTFE Fluoropolymer and 1 fuse.

Options / Add on (Contact us for quote)

Built in compressor 3/8 Wide Seal Element
Dual Heat 1/4 Wide Seal Dual Heat 3/8 Wide Seal
Single or Dual Switch Illuiminated Start Switch
Emergency Stop Switch Additional Tube Tray
220V Single Phase Water Cooled Bars

Specifications and additional product information
Size:
• Width 12 1/4"
• Height 14 1/4"
• Depth 14 1/2"
• Weight 45 Lbs.

Power
• 115V 10amps
• Dry Air 60psi
$2,015.00
