Item No: CR1210

CR Clarke Vacuum Former / Forming CR1210, Max Sheet 228 x 305mm

See all items from CR Clarke
Product Description

CR Clarke Vacuum Former / Forming CR1210, Max Sheet 228 x 305mm

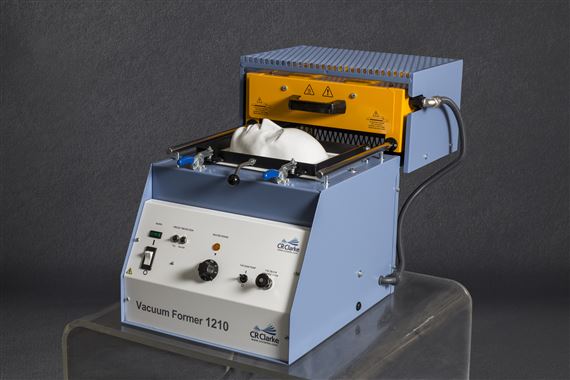

CR Clarke CR1210 Vacuum Former

Our CR Clarke CR1210 Vacuum Former has been developed for high performance, ease of use and low maintenance. The machine is fitted with a robust diaphragm vacuum pump that generates -0.83 Bar, and also provides a blow release facility to aid removal of the completed forming. The ceramic heater system heats all thermoplastic materials quickly and evenly. Machines are fitted with our safety interlock system to prevent taller molds damaging the heater system, while the platen and the heater hood both run on chrome plated slides with nylon bushings for smooth operation.

The material seal is custom manufactured from RTV silicone as a one-piece gasket, and the platen seal simply lifts out for easy replacement.

A stand with shelf and lockable castors is available as an accessory for the CR Clarke CR1210.

Specifications and additional product information
  • Voltage 230V 50-60Hz
  • Max Current 5.9 Amps
  • Max. Forming Aperture 8.03 x 11 in / 204 x 280mm
  • Sheet Size 8.97 x 12 in / 228 x 305mm
  • Maximum Mold Height 3.937 in / 100mm
  • Maximum Material Thickness .235 in / 6mm
  • Platen Stroke 4.5 in / 115mm
  • Vacuum (typical) 635mm Hg (-0.86 bar)
  • Heater System: Ceramic
  • Dimensions (Packed) 36.5 x 25 x 26 in / 930 x 630 x 670mm
  • Weight (Bare Machine) 90 lbs / 41kg
  • Weight (Packed) 90 lbs / 41kg
Download the PDF brochure for more infoIntro to Vacuum Forming, 4 pages
