    Diamond Edge Polisher CR1525H

    Item No: CR1525H

    Product Description

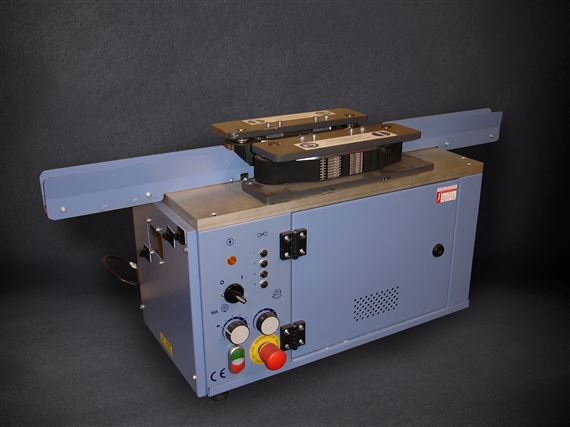

    Diamond Edge Polisher CR1525H
    Diamond Edge Polisher CR1525H

    The CR1525H Diamond Edge Polisher will convert the sawn edge of a piece of plastic material into a high-gloss polish in one operation. Our machine uses two diamond cutting tools mounted into a precision balanced steel cutter hub, ensuring minimal vibration even at the maximum cutter speed of 20,000rpm. The cutter hub is mounted onto a motorized spindle with electronic speed control, allowing the operator to vary the cutter speed for differing material characteristics.



    Materials from 2 to 25mm in thickness can be loaded onto the infeed track of the machine, and are fed across the cutter hub by the auto-adjusting, variable speed belt feed system. The belt feed system ensures that longer panels can be processed, while our unique cutter cover that extends the feed tracks over the cutter ensures that short panels are polished accurately and consistently. The belt feed system also allows sheets of thinner materials to be polished as packs, maximizing throughput. On average, the CR1525H will produce 1 meter of polished material per minute.

    The cutting process generates fine chips of material, and these are extracted from beneath the cutter to an external extraction unit. The extraction port of the machine can either be connected to our 1525E Extraction Unit or any other suitable extraction system.

    As with any Diamond Polishing machine, the cutter hub of the CR1525H will eventually lose its edge and the polish quality will deteriorate. We offer a service exchange system so that, when this happens, you simply contact us and we will send a replacement cutter hub with fresh tools. Once the cutter hub is swapped over the original hub is returned to us for servicing ready for the next customer. Spare cutter hubs are available for high-volume users that need instant access to replacement cutters, and matt hubs are also available. These are ideal for finishing frosted materials and also for edges that require bonding.

    Specifications and additional product information
    Voltage: 230V 50-60Hz
    Max Current: 8 Amps
    Maximum Material Thickness: .98 in /  25mm
    Minimum Material Thickness: .118 in / 3mm
    Maximum Panel Size: 39.37 x 39.37 in /  1000 x 1000mm
    Minimum Panel Size: 2.95 x 2.95 in  /  75 x 75mm
    Amount of Material Removed: .019 in / 0.5mm per pass
    Dimensions (Packed): 32 x 18 x 19 in /  820 x 460 x 490mm
    Weight: 143 lbs / 65kg
    Resources
    Brochure
