Item No: CR750FLB

CR Clarke Vacuum Former / Forming CR750FLB, Max Sheet 508 x 458mm

See all items from CR Clarke
Product Description

CR Clarke Vacuum Former / Forming CR750FLB, Max Sheet 508 x 458mm

Contact us for pricing.

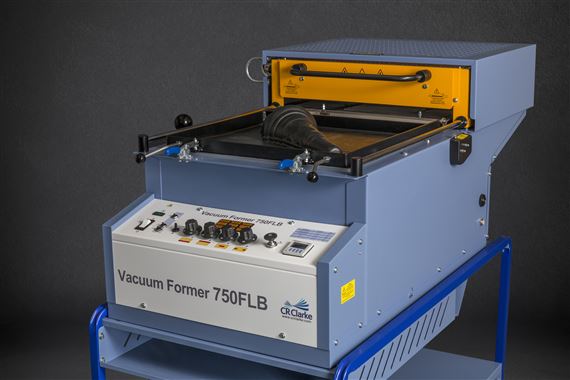

CR Clarke Vacuum Former CR750FLB (482mm x 422mm max Aperture)

Our CR Clarke CR750FLB Vacuum Former has been developed for high performance, ease of use and low maintenance. The machine is fitted with a robust rocking head vacuum pump that generates -0.83 Bar, and also provides a blow release facility to aid removal of the completed forming.

The ceramic heater system heats all thermoplastic materials quickly and evenly. Four individual heating zones with panel controls allow fine-tuning of heat distribution. Machines are fitted with our safety interlock system to prevent taller molds damaging the heater system, while the platen and the heater hood both run on chrome plated slides with nylon bushings for smooth operation. The material seal is custom manufactured from RTV silicone as a one-piece gasket, and the platen seal simply lifts out for easy replacement.

The machine has a digital timer with an audible alarm, assisting the operator to heat the material to the correct state on each forming. The 750FLB comes complete with a stand with lockable castors. Half, quarter and custom size reducing plates are available.

Optional reducing frames are available for working with smaller sheet sizes as follows: CR750R/1 Sheet Size 458 x 254mm CR750R/2 Sheet Size 254 x 228mm CR750R/S Special Size Reducing Frame to Customer Order

Specifications and additional product information
  • Voltage: 230V 50-60Hz
  • Max Current: 11 Amps
  • Max. Forming aperture: 482 x 432mm
  • Sheet Size: 508 x 458mm
  • Maximum Mold Height: 140mm
  • Maximum Material Thickness: 6mm
  • Platen Stroke: 152mm
  • Vacuum (typical): 635mm Hg (-0.86 bar)
  • Individual Heat Control Zones: 4
  • Heater System: Ceramic
  • Dimensions: (Packed) 800 x 1400 x 900mm
  • Weight: (Bare Machine) 201 lbs / 91kg
  • Weight: (Packed) 2335 lbs / 152kg
Download the PDF brochure for more infoIntro to Vacuum Forming, 4 pages
