Item No: 40610

Electric Powered Abrasive Belt Tool


Product Description

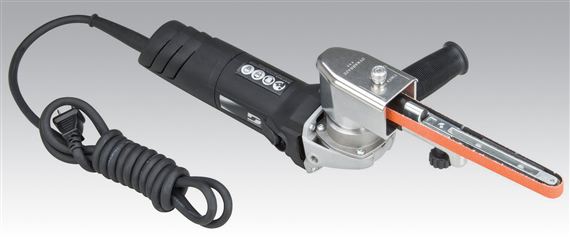

Electric Powered Abrasive Belt Tool

  • Runs coated abrasive and non-woven nylon belts, and is ideal for countless applications on metal, plastic, fiberglass, solid surface, stone, glass, etc.
  • Grind with contact wheel or platen pad. Finish and polish using slack of belt.
  • Tool accepts over 20 interchangeable contact arms, for use with belts 1/8" to 3/4" wide x 18" long.
  • Comfortable switch with “lock on” feature.
  • Easily accessible brushes for quick replacement.
  • Sanding head pivots 360° for working in previously inaccessible areas.
  • Reversible side handle for operator comfort.
  • Tool is double-insulated for safety, and includes electric cord, 8 feet in length.

Model 40610 120V (AC), 11,000 RPM

• Each tool includes 11203 Contact Arm, for abrasive belts* 1/2" wide by 18" long.

* Belts– Tough reinforced non-woven nylon impregnated with abrasive grain and resin. Ideal for surface conditioning, decorative finishing, light/heavy cleaning, blending and polishing.

Electric Versatility Kit

40611 Kit 120 V (AC)
40616 Kit 220 V (AC)

  • Includes Electric file with 11203 Contact Arm, and two additional arms (11202 and 11204). Also includes eight abrasive belts of various grits, and an assortment of platen pads. All items contained in a durable carrying case.

Specifications and additional product information
Model
Number
Motor
RPM
Maximum
Watts Out
Abrasive Belt Size
Inch (mm)
Voltage Current
Amps
Phase Frequency Weight
Pound (kg)
Length
Inch (mm)
Height
Inch (mm)
40610 11,000 680 1/4-3/4 (6-19) W x 18-24 (457-610) L 120 V (AC) 6 1 50/60 Hz 5 (2.3) 19 (483) 5-1/2 (140)
40615 11,000 680 1/4-3/4 (6-19) W x 18-24 (457-610) L 220 V (AC) 3,4 1 50/60 Hz 5 (2.3) 19 (483) 5-1/2 (140)
Plug Type: 40610 – USA, 40615 – European Universal Additional Specifications: Maximum 2,520 SFPM (768 SM/Min)
$318.00
