Item No: 8380-01

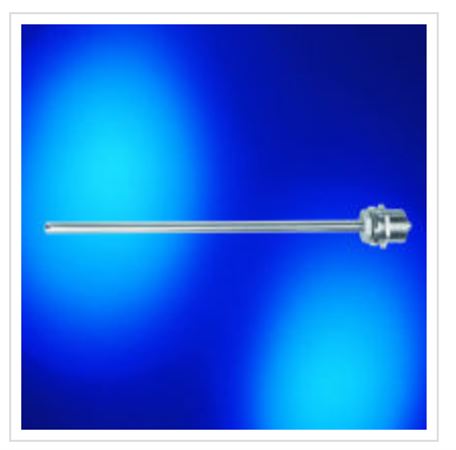

High precision air flow transmitter rod module.


See all items from Lufft Instruments
Product Description

High precision air flow transmitter rod module.

Sensor
Stainless steel sensor tube with thermopile
Shaft length 300mm
Shaft height 300mm
Operating voltage 24 VDC ±20%
Electrical connection 4-pole connector with coupling socket, screw terminals and retainers supplied loose
Mounting Stainless steel screw socket with M 25x1.5 external thread and locknut
Output signal 4...20mA
Protection type IP65
Weight Approx. 200g
Operating temperature electronics 0...60°C
Operating temperature sensor -20...85°C
Response time t90 1s (leap from 0 to 5m/s)
Power consumption <150 mA

Specifications and additional product information
Flow:

Principle Hot-wire
Measuring range 0 ... 1 m/s
Unit m/s
Accuracy ±(0.06 m/s + 10% of measurement)
$3,230.00
