Item No: G5E

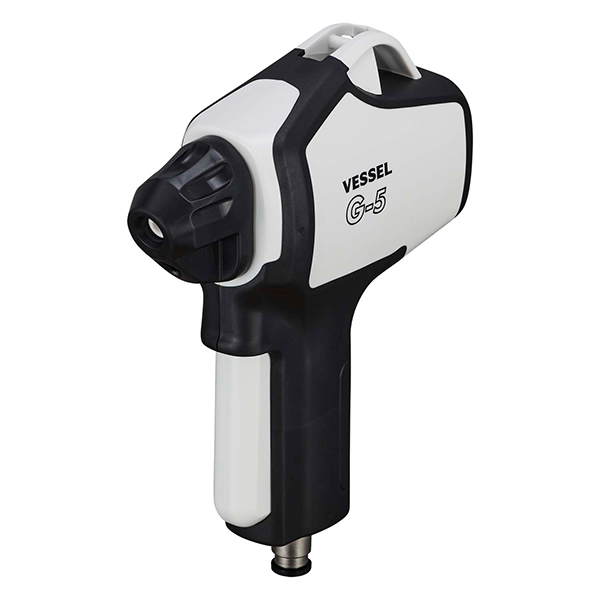

G-5E Air-Powered Static Ion Gun w/ Powerful Blow-Off Force


Product Description

G-5E Air-Powered Static Ion Gun w/ Powerful Blow-Off Force

Next generation Air-Powered Ionizing Gun for static elimination and dust removal.

Next generation Air-Powered Ionizing Gun for static elimination and dust removal
  • ✅ Fully air-powered operation – no electrical cables required
  • ✅ Built-in power generation eliminates need for external power supply
  • ✅ Simple plug-and-play connection using a single air source
  • ✅ Powerful blow-off force up to 101psi (0.7mpa) – ideal for dust removal
  • ✅ Quick decay time of less than 1.0 second
  • ✅ Ion balance within ±20V (at 58psi/0.4MPa or below)
  • ✅ Integrated LED light for improved visibility
  • ✅ Durable housing with protective rubber and nozzle guard
  • ✅ Newly designed hanger for more versatility
  • ✅ Ultra-compact and lightweight design (only 0.8lbs)
  • ✅ Low maintenance with visible status LED indicator

The VESSEL G-5E Air-Powered Static Ion Gun is the next-generation static control solution engineered for maximum performance, mobility, and ease of use. Powered entirely by compressed air, the G-5E requires no electrical connections or external power supplies, delivering true plug-and-play operation that allows operators to move freely between workstations.

Compared to previous VESSEL models, the G-5E delivers significantly higher air pressure – up to 101.5 psi (0.7MPa) – making it ideal for applications that demand reliable static neutralization, precision cleaning, and effective contamination removal. Its rapid static decay time of less than one second and excellent ion balance ensure consistent performance in manufacturing, assembly, and clean working environments.

Designed with both performance and durability in mind, the G-5E features a rugged, ultra-compact housing with protective rubber, a built-in LED light to illuminate the work area, and a visible status indicator display for easy monitoring. A newly designed hanger provides added flexibility for storage and workstation setup, while the lightweight design (only 0.8 lbs) minimizes operator fatigue.

With overall minimal maintenance requirements and powerful air output, the VESSEL G-5E is an ideal solution for users seeking a reliable, efficient, and maintenance-friendly air-powered ionizing gun for static elimination and dust removal.

Specifications and additional product information
Model Number (EDP #) G-5E (621681)
Ionizing Method / Applied Voltage AC corona discharge
High Voltage Power Source Coiled transformer (Built-in)
Applied Voltage 8kVAC p-p / 32kHz
Ion Balance Within ±20V(~0.4MPa)、within ±40V(~0.7MPa)
Decay Time ±1000V→±100V:1 second or less
(Air supply condition 0.5MPa, at 150mm)
Air Volume 422ℓ/min(0.5MPa) Clean Dry Air
Dimensions (LxHxD) 5.47" x 6.46" x 2" (139 x 164 x 51mm)
Estimated Weight 0.8 lbs (365g)
Air Supply Hose O/D Ø8mm Tube Fitting
Operating fluid/Input pressure Clean dry air / 0.2~0.7MPa (Rated 0.5MPa)
Noise Level 99.3dBA (Air supply condition 0.5MPa, at 1000mm)
Working Temp/Humidity 5~45℃ / 10~90%RH(No dew condensation or freezing)
Storage Temp/Humidity -30~50℃ / 10~90%RH(No dew condensation or freezing)
Protective Circuit High-voltage shrort-circuit detection circuit
Overloaded voltage protection circuit
High temp. abnormality stop circuit
Materials Body: Polycarbonate (frame retardant) /ABS (frame retardant)
Needle electrode: Tungsten
Nozzle: PBT
Built-in parts: PBT
Accessories / Optional Items Instruction manual
Air joint φ8mm (already mounted)
Nozzle guard (already mounted)
Country of Origin Japan
$700.00
