WB9000 Extrusion Welder


Product Description

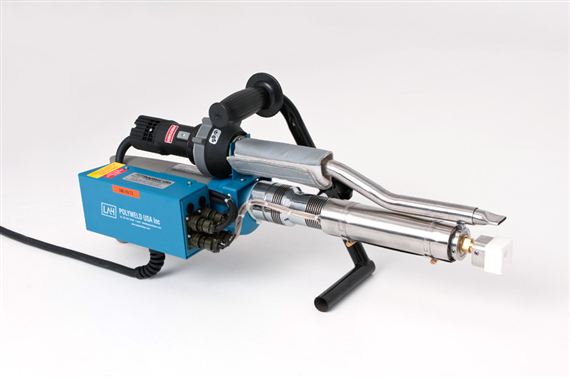

WB9000 Extrusion Welder
The WB9000 is designed and manufactured in the U.S.A. for geo-membrane installation. With its durable 2-hp motor the 9000, can conquer any job related to PE, PP liners, and pipes. The 9000 also come with its own reliable pre-heat source. Shipping includes the WB9000, Blank tip, Instructions, and a Case.

  • Powerful drive motor with and custom built motor armature and field with warranty.
  • Reliable Forsthoff pre-heat source.
  • Military standard connectors for control box which can last through the roughest weather conditions.
  • Handle doubles as a stand, making it nearly impossible to tip welder over, preventing pre-heat air from burning a hole in the liner material.
  • Non-Twisting rod feed design makes it easier to manage welding rod. Works with 4 or 5MM rod.
  • Teflon tips are available in pre-machined design of inside corner, outside corner, custom design, or blanks.

Weight 25 lbs
Dimensions 7" x 29" x 11"
extruder heaters 1200 Watt Custom Heater
preheat (optional) 1400 Watts, 240 VAC 50-60 Hz
extruder output up to 13 lbs/ hr
welding rod 4mm or 5mm
overall power required 18 Amps, 4000 Watt, 240 VAC
