    Fan Type Ionizer, Butterfly Louver

    Item No: F120RE

    Product Description

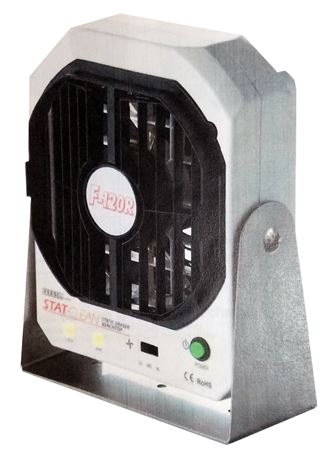

    Fan Type Ionizer, Butterfly Louver
    Reliable long-lasting ionizing performance. This ionizer features a butterfly louver for flexible setting of the ionizing area. The fan's patented unique capacitive-coupled electrode needles enable the fan to perform with superior ion balance.

    • Ionizing method: Piezo high-frequency AC Corona discharge method.
    • Our original compact piezoelectric transformer realizes a slim & compact body.
    • The powerful 120 mm square DC fan feeds ionized air to remote places. The fan’s airflow volume can be adjusted in three stages.
    • The airflow direction and angle at the front cover can be changed to set the static erasing range to straight or wide angle.
    • The front cover can be opened and closed with a single touch. Easy access to the internal components simplifies maintenance. The “needle electrode”, which must be cleaned or replaced, is unit-type module which can be replaced easily without tools.
    • Applied voltage: AC10kV(p-p)
    • Power supply and current consumption: DC24V±5% 700mA (max.)
    • Airflow: 3.66m3 /min (at max.airflow)
    • Noise level: 62.1dBA (at max.airflow, airflow direction straight, measured at 1m)(measured values)
    • Ozone production: 0.05ppm or less (measured 150mm)
    • Error warning: High voltage output stop (red LED), fan locked (red LED)
    • Protection function: Fan motor rotation monitor function (locking detection), high voltage output shut down function (overload detection), front cover safety device (circuit shutoff when open)
    • Operating environment temperature and humidity:5°C to 40°C / 35% to 65% RH (with no dew condensation or freezing)
    • Operating range: 150 mm to 900 mm
    • Installation place: Non-hazardous place indoors

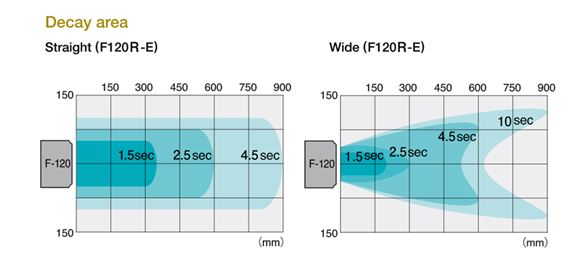

    • Decay time: within 1.3 sec (at max.airflow, Air flows straight, measured at 300mm)(measured values)
    • Ion balance: within ±10 V (at max.airflow, Air flows straight, measured at 300mm) (measured values)
    • Material Body: Flame-resistant ABS resin Stand: Stainless steel Front Cover: Flame-resistant ABS resin Electrode needles: Stainless steel
    • Accessories: AC adapter AD24-IT, Instruction Manual
