    Horizontal Type Sliding Air Nipper

    Product Description

    Horizontal Type Sliding Air Nipper

    • Enabling effective use of space.
    • Convenient for mounting to chuck plate.
    • Small and lightweight— suitable for mounting on automatic machines because its main body height is low. Operation of chuck panel is not interrupted even when work is taken out.
    • Slide stroke can be adjusted (0 to 3mm).
    • Body and blades are purchased separately.
    • Slide part has no looseness and has good durability.
    • External surface of main body has blue alumite finish with excellent rust prevention.
    • Tube fitting and hose nipple types available, enabling one-touch connection of air hose.
    • Blade opening control function can be provided by special order.
    • Blades are special alloy steel
    • Select blade with "R" for "push" type sliding nippers

    Specifications and additional product information


    Air Nipper Body
    Model Weight Air Cons. Sup. Air Pres. Applied Force. Slide Stroke Fitting Specs:
    Push connect
    Cutting Cap.
    (g) cm3/stroke MPA psi N ibf (mm) (mm)
    GTNY054 155 48 .4- .5 58–73 343 77 Pull 0-3 4mm OD hose 3.0
    GTNY05R4 155 48 .4- .5 58–73 343 77 Push 0-3 4mm OD hose 3.0
    GTNY104 210 68 .4- .5 58–73 490 110 Pull 0-3 4mm OD hose 3.5
    GTNY10R4 210 68 .4- .5 58–73 490 110 Push 0-3 4mm OD hose 3.5
    GTNY154 319 136 .4- .5 58–73 784 176 Pull 0-3 6mm OD hose 4.0
    GTNY15R4 319 136 .4- .5 58–73 784 176 Push 0-3 6mm OD hose 4.0
    GTNY256 580 184 .5- .6 73–87 980 221 Pull 0-5 6mm OD hose 5.0
    GTNY25R6 580 184 .5- .6 73–87 980 221 Push 0-5 6mm OD hose 5.0

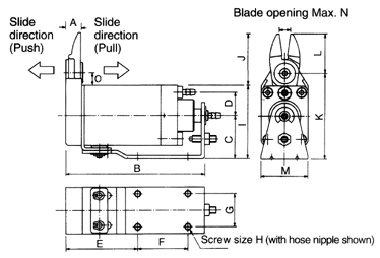

    Dimensions (mm)
    Model A B C D E F G H I J K L M N O
    GTNY05 8.6 75.9 21.6 13.3 40.9 25 15 M4 39.1 30.5 46.7 22 23 4 8.6
    GTNY10 8.8 82.1 26.1 13.8 42.1 30 20 M4 44 31.6 51.6 24 28 6 7.6
    GTNY15 10.2 93 30 16 48 35 25 M4 50.5 34.5 58 27 33 8 7.5
    GTNY25 12.5 108.5 35 19 54.5 40 30 M5 58.5 41.5 69 31 42 9 10.5


    Diagrams and CAD documents available by request.
    Resources
    Diagram

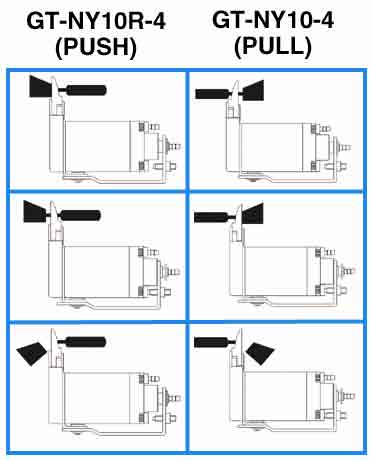

    Download the diagram.Pull and push nipper Illustration
