Thrust-Cut Type Air Nipper System


Product Description

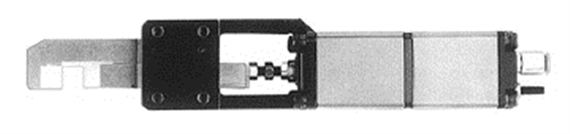

Thrust-Cut Type Air Nipper System


  • Cutting edge surface is clean and smooth, because cutting can be made from thin side of film gate.
  • Blade opening can be adjusted from 0 to 12mm.
  • Main cylinder is blue alumite finished and provides excellent wear resistance
  • Mounting bracket (optional), makes for easy installation on the machine.

Specifications and additional product information

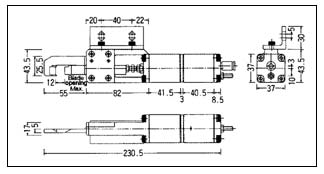

Dimensions of Each Part (mm)
Specifications
Main Body, GT-NK10
Cutting Capacity
(ABS)(mm)		 Air consumption
(cm3/stroke)		 Weight
(g)		 Air pressure
(kgf/cm2)		 Hose I.D.
(mm)		 Piston stroke
(mm)
ø5 110 800 4~5 ø4 max 12


Blade, NK10AJ
Material Shape Weight Blade opening
Max.		 Cutting blade effective
L
Special alloy steel For plastic (knife type) 96 (g) 12 (mm) 10.3 (mm)


Diagrams and CAD documents available by request.
