Item No: 8367-U04

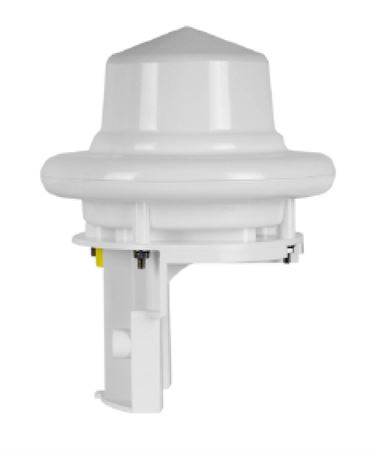

WS100 Radar Precipitation Sensor / Smart Disdrometer

Lufft Sensor Probe OTT Hydromet

See all items from Lufft Instruments
Product Description

WS100 Radar Precipitation Sensor / Smart Disdrometer
WS100 Radar Precipitation Sensor / Smart Disdrometer

Absolutely maintenance-free and extremely fast measurement of precipitation type (Rain, snow, sleet, freezing rain, hail) and intensity, thanks to radar measurement technology. The smart radar rain sensor & present weather detector!

  • Parameters measured: Rain/precipitation quantity, rain/precipitation type (Rain, snow, sleet, freezing rain, hail)
  • Measurement technology 24GHz Doppler radar
  • Product highlights Very fast response time, maintenance-free measurement, present weather detection
  • Interfaces RS-485 semi-duplex two-wire, SDI-12, pulse interface / UMB protocol, Modbus
  • Model: 8367.U04 T
The Lufft WS100 is our rain sensor with radar technology and adjustable heating. Using a 24-GHz Doppler radar, it measures the speed of all forms of condensed water. These include rain, freezing rain, hail, snow and sleet. The low-energy sensor detects precipitation from the first drop. Its possible uses are nearly unlimited. Whether in hydrology and water management, agricultural and environmental science, building automation, meteorology or airport and traffic control: the rain gauge measures rain almost anywhere in the world.

Specifications and additional product information
General
Dimensions Ø150 mm (5.9 in), height: 190 mm (7.48 in)
Weight ~0.6 kg
Electrical parameters
Power supply 10...28 VDC
Power consumption without heating 1 VA / 0.4 VA (low power mode)
Heating power 9 VA
Operating parameters
Operat. temp. range -40...60 °C
Operat. humidity range 0...100 %
Protection class IP66
Survival wind speed 75 m/s
Data transfer
Interfaces/ protocols RS-485 semi-duplex two-wire, SDI-12, pulse interface / UMB protocol, Modbus
(Pluggable) cable length 10 m
Transmission frequency 24 GHz
Precipitation
Measurement surface 9 cm²
Precipitation types Rain, snow, sleet, freezing rain, hail, drizzle; No precipitation (SYNOP 4677)
Principle Doppler radar
Accuracy ±0.16mm or ±10% of the measured value for liquid precipitation*
*) Under laboratory conditions by means of Lufft test system: Reference drop simulator with 2.8 mm drop diameter and adjustable intensity between 10 and 200 mm/h.
Resolution liquid preciptiation 0.01 / 0 .1 / 0.2 / 0.5 / 1.0 mm (pulse interface)
Measurement ranges
Droplet size 0.3...5.0 mm
Drop Size Distribution 11 drop size classes with bandwidth of 0.5 mm
Precipitation intensity 0.01...200 mm/h / 0...7.874 inch/h
Particle velocity 0.9...15.5 m/s
Solid precipitation 5.1...~30 mm
Resources
Brochure
Download the PDF brochure for more info2 page flyer with specifications
Download the PDF brochure for more info14-page Information Brochure WS100
$1,707.56
