Aquaflame Systems Flame Polishing and Micro Welding
Safe & Efficient Acrylic Flame Polishing without gas cylinder storage

A reliable, safe-operating solution for your acrylic edge polishing or micro-welding needs.

***News Flash! Aquaflame is able to set up Virtual Demonstrations (via Zoom) with any customer that would like to see the system in action and talk to the technicians. Contact us for details: 800-922-0977, or email: abbeoncal@abbeon.com.

***Aquaflame ships from the U.K. Call us for shipping estimate before purchase! *** 800-922-0977

The Aquaflame Systems 500, 800 and 1200 systems produce hydrogen and oxygen by the electrolysis of deionized water, in the ratio such that the hydrogen can be burnt in the oxygen. This produces a high energy heat source that is highly controllable and efficient. The only other by-product is water, making it truly efficient and environmentally safe.



Investment Casting:



Can also be used for micro-soldering circuit boards, medical instruments, jewelry and dental repairs.
See video here:



Adding Chemicals video: (9 minutes)



The clean flame and precise control make the Aquaflame Systems idea for edge-polishing or removing light scratches from Acrylics, even intricate shapes, in a single quick operation. Can also be used for micro-soldering circuit boards, medical instruments, jewelry and dental repairs.

(See our brochures in the Video & Docs tab above for detailed information on this product)

Chemicals must be obtained from chemical supplier.


Once the machine is filled it is ready to use. Does not require gas cylinders, so no need to store them. Only the addition of deionised water and Methyl-Ethyl-Ketone (MEK) from time to time is required. The fractional cost of these chemicals compared to gas will mean long-term cost savings.
  • LM135K - Aquaflame Systems 500 Kit with Tips (6 of #20, 2 of #21). 120 Volts,  5 mm thickness in one pass, 44 lbs.

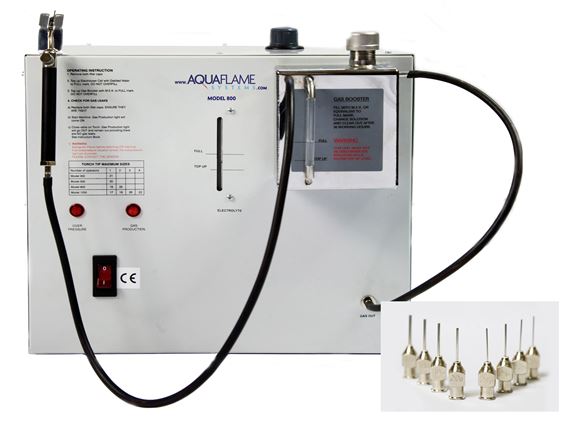

  • LM136K - Aquaflame Systems 800 Kit with Tips (4 of #18, 2 of #19, 4 of #20, 4 of #21). 120 Volts,  10 mm thickness in one pass, 66 lbs.
  • LM137K - Aquaflame Systems 1200 Kit with Tips (2 of #17, 4 of #18, 2 of #19, 4 of # 20 & 2 of #21, 120 Volts, 15 mm thickness in one pass, 108 lbs.
LM138 - An additional battery operated Aquaflame Systems Torchlighter. One Torchlighter is included with each machine. This additional battery operated torch lighter is available for safe and convenient torch lighting.

Standard torch hose length = 1 meter (39"), maximum recommended torch hose length = 2 meter (78")

Chemicals must be obtained from chemical supplier.

Chemicals required:
Model 500: 300 grams Potassium Hydroxide Reagent grade cyrstals, 1.75 liters deionised water and 1 quart MEK (Methyl Ethyl Ketone).

Model 800:  600 grams Potassium Hydroxide Reagent grade crystals, 3.5 liters deionised water and 1 quart MEK (Methyl Ethyl Ketone).

Model 1200:  1200 grams Potassium Hydroxide Reagent grade crystals, 5.25 liters deionised water and 1 quart MEK (Methyl Ethyl Ketone).
Manufacturer of the alloy should provide guidance and instruction regarding the flux to be used with that alloy. A low temp soldering is preferred rather than the high temp soldering for Stainless steel wire to prevent carbide precipitation and to prevent an excessive softening of the wire. So silver solders are generally preferred.

Purpose of flux is to remove any oxide coating on the substrate metal surface when the filler metal is fluid and ready to flow into place. They protect the alloy surface from oxidation during soldering and dissolve metallic oxides as they are formed. The resulting solution of oxides or other extraneous matter in flux constitutes “slag”.

Aquaflame Systems produces an oxyhydrogen flame by electrolysis – the gas is produced on demand and at low pressure. The machine is small, low capital cost and low maintenance. Aquaflame machines are high performance oxyhydrogen gas-generating units producing a high temperature precision flame – in the range 1200-3300°C (2200°F – 6000°F) used for soldering and welding items.

Using a standard electrical supply, hydrogen and oxygen are produced by the electrolysis of distilled water such that the hydrogen can be burnt in the oxygen.

The oxyhydrogen gas is passed through an MEK (Methyl Ethyl Ketone) solution which reduces the temperature to about 1850°C (3350°F) and transforms the flame to a blue / yellow color. The flame is a highly controllable, efficient high energy heat source. The only product of this process, other than energy, is water.

The Aquaflame Systems is safe as it only produces gas as required; it is also efficient, clean and environmentally friendly. Aquaflame is truly a remarkable soldering /welding machine.

Aquaflame Systems is also referred to as a water torch, micro weld (microweld), mini welder, Micro Flame, Aqua torch, Hydroflame. Hydrogem, Jewel Flame, Klein Weld.
-----------------------
Aquaflame offers service and repair if customers wish to mail their machine to the UK. They recommend service every 4000 hours or 2 years. Address: Aquaflame Systems Unit 5, Boulton Industrial Estate Birmingham B18 5AU UK. More information found here.

Ships from the U.K., Call us first for shipping estimate! 800-922-0977.

Specifications and additional product information

EQUIPMENT INFORMATION

EQUIPMENT
INFORMATION

Reference number:

LM135K
LM136K
LM137K

Gas production: 74 lt/h
120 lt/h
240 lt/h

Maximum flame temperature:

3300c

Electrical usage: 0.50 kW
0.80 kW
1.20 kW

Distilled water use (per day):

30 ml
50 ml
100 ml

Flash back fitted: Yes

Torch tips range supplied:

20 - 24
18 - 24
17 - 24

Torch tips bore size supplied (mm): 0.503-0.310
0.839 - 0.310
1.066-0.310

Service recommended period:

12 months

Guarantee period*: 3 years

Length:

400mm
400mm
440mm

Width: 200mm
280mm
320mm

Height:

300mm
380mm
395mm

Shipping Weight: 20kg
30kg
50kg
FLAME POLISHING DETAILS

Chemical for flame positioning:

MEK

Width that can be polished in one pass: 5mm
10mm
15mm
(with No 18 tip)

Typical polishing times (per meter):

1 min
2 mins
3 mins


* Servicing required every 12 months for guarantee to apply.
Due to continuous improvements, some of the above details may change
Resources
Brochure
Download the PDF brochure for more infoGeneral brochure (Link above)
Download the PDF brochure for more infoServicing Instructions (Link above)
Download the PDF brochure for more infoService Kit Components (Link above)
Download the PDF brochure for more infoChemical Information (Link above)
Download the PDF brochure for more infoMSDS Safety Data Sheet for Potassium Hydroxide
LM137K

$5,131.00
Quantity
LM136K

$3,299.00
Quantity
LM135K

$2,668.00
Quantity
