4 Foot Multiple Bars Bending Machine


Product Description

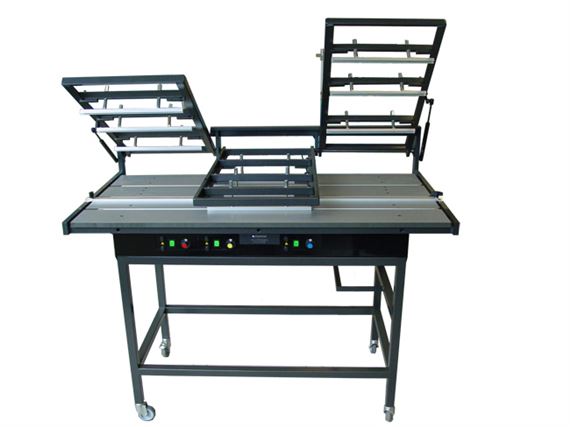

4 Foot Multiple Bars Bending Machine
3 Upper Trays Bending Tables, 4 feet

Very productive bending machines, standard equipped with under heating and consisting of quickly adjustable profiles with a heating wire (15 mm. or 30 mm. wide).

These tables ship from the Netherlands. Please contact us for shipping costs.

Due to the Covid-19 virus, costs and leads times are affected.

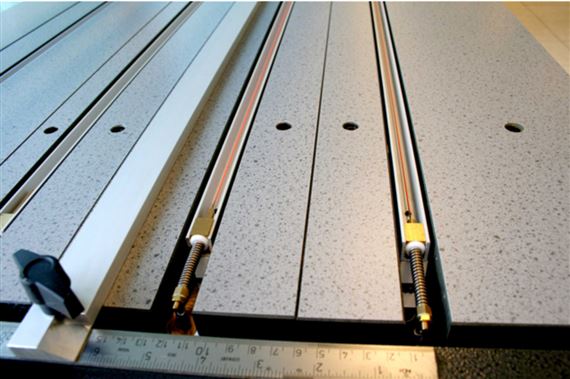

The heating wires can be adjusted in height. The temperature of the heating wires are controlled (continuously variable) with an EV or DB  regulating unit:
-EV  Regulating unit = Controls one heating wire, 110 or 220 V
-DB
  Regulating unit = Controls two heating wires, 110 or 220 V

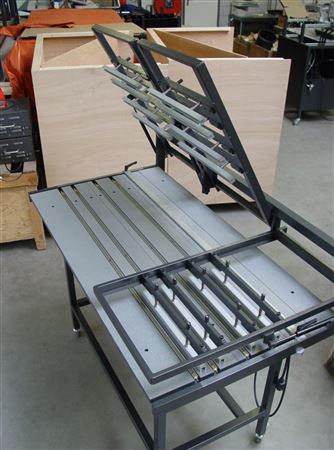

The manual controlled upper frame consist of 3 parts and is provided with multiple adjustable clamping bars. Durable sliding panels of the working surface can be brought into place or completely detached with ease. A parallel stop is supplied with Inch and Millimeter scales.

The machine is modular constructed and internally prepared to easily be expanded, with extra profiles and/or regulating units.

Specifications and additional product information
  • Standard construction:  2 reflectors with 2 EV regulating units
  • Working length: 125 cm. / 57 inches
  • Heating: Under
  • Sheet thickness: 0.4 - 6 mm.
  • Distance between reflectors (center to center): 15 – 620 mm.
  • Adjustable clamping bars Standard equipped with 2 pieces
  • Weight: 110 kg. / 242 lbs
  • Connection voltage: 110V or 220 - 230 Volt, specify when ordering.
