Product Description

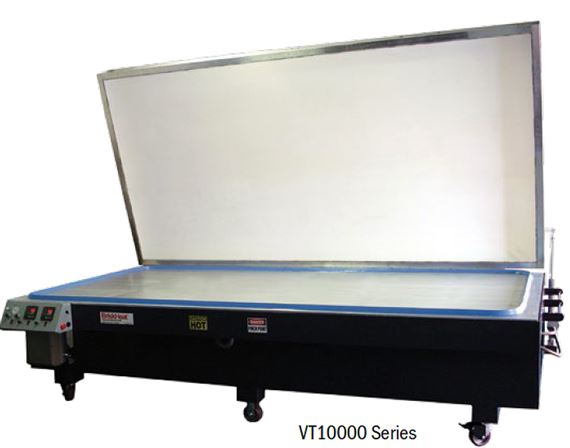

Vacuum Curing / Debulking Tables
For your Composite Curing applications, these tables come in 52 x 56", 52 x 124" and 66 x 138" (usable) sizes.
Features include:
- Heat and vacuum in one easy step for debulking
and curing composite parts.
- Reusable vacuum bag with an 800%
elongation factor.
- Curing temperatures up to 400ºF (204ºC).
- Individual
zone controls, audible alarm, PID with auto tuning, heater break
protection, 3 phase 208, 240, 380 or 480VAC.

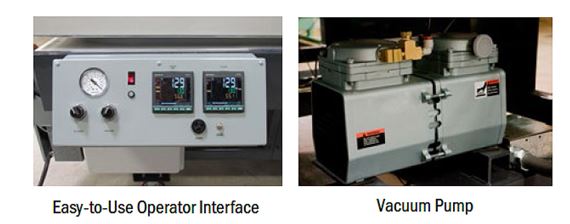

Temperature:
Control
Dual display shows set-point and actual process temperature,
Multiple ramp/soak steps,
PID with autotuning,
Programmable to either °C or °F,
Audible alarm,
Program security lock levels.
Heater:
Highly durable and uniform multi-stranded heating element,
Heater break protection.
Vacuum System:
2-stage electric oil-less rocker piston vacuum pump.
Lid:
High tear strength, reversion resistant silicone rubber reusable vacuum bag with 800% elongation,
Safety interlocked push buttons ensure both hands are on the operating console while the lid is in motion,
Dual ball screw actuators for positive lid movement.
Power
Choice of 3-phase 208, 240, 380 or 480VAC.
All systems are fuse protected.
