Item No: EVT11

Dual Channel Datalogging Thermometer, EVT11


Product Description

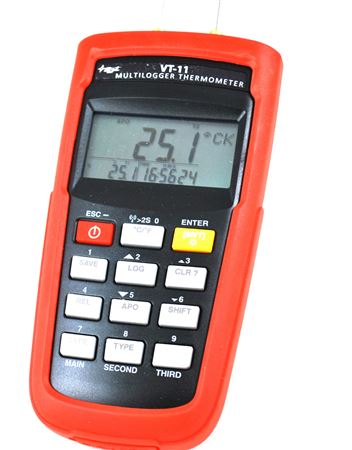

Dual Channel Datalogging Thermometer, EVT11

The EVT11 is a precision microprocessor controlled thermometer Data Logger (digital temperature indicator).

For Automotive, Chemical, Food Industry, Paper and Pulp Applications.

This high accuracy thermometer works with the seven most popular thermocouple types: K, J, T, E, R, S & N. It is designed to deliver years of trouble-free service: lab use, preventive maintenance, heat-treating, product quality, and general measurements. For the most accurate readings with the lowest margin for error, it is recommended to use our assured accuracy sensors (See 4" Needle Temp Sensor under Related items).

Features:
  • Wireless data transmission
  • USB interface
  • Easy to read up/down keys
  • DC 12V adapter
  • Basic accuracy: 0.05%
  • Dual inputs with K/J/E/T/R/S/N thermocouples
  • Triple display with adjustable back light
  • Real time clock & calendar
  • Audible warning with Hi/Lo setting
  • Max/Min/Avg/Rel/Hold function
  • Main display for T1/T2, Third display for T1-T2, with real time clock & calendar
TEMPERATURE SPECIFICATIONS:

Thermocouple Range:
  • K-TYPE (0.1°, 1° above 2000 °F) -200 °C to 1372 °C (-328 °F to 2501 °F)
  • J-TYPE (0.1°, 1° for above 2000 °F) -210 °C to 1200 °C (-346 °F to 2192 °F)
  • T-TYPE (0.1°) -200 °C to 400 °C (-328 °F to 752 °F)
  • E-TYPE (0.1°) -210 °C to 1000 °C (-346 °F to 1832 °F)
  • R-TYPE (1°) 0° C to 1767 °C (32 °F to 3212 °F)
  • S-TYPE (1°) 0° C to 1767 °C (32 °F to 3212 °F)
  • N-TYPE (0.1°, 1° for above 2000 °F) -50 °C to 1300 °C (-58 °F to 2372 °F)
According to temperature standard ITS-90.

Accuracy:

K/J/T/E-TYPE:
(0.05% rdg+0.7 °C) -210 C to -50 °C (0.05% rdg+0.3 °C) -50 °C to 1372 °C
(0.05% rdg+1.4 °F) -346 °F to -58 °F (0.05% rdg+0.6 °F) -58 °F to 2501 °F.

N-TYPE:
(0.05% rdg+0.8 °C) -50 °C to 0 °C (0.05% rdg+0.4 °C) 0° C to 1300 °C
(0.05% rdg+1.6 °F) -58 °F to 32 °F (0.05% rdg+0.8 °F) 32 °F to 2372 °F

R/S-TYPE:
(0.05% rdg+2 °C) 0 °C to 1767 °C
(0.05% rdg+4 °F) 32 °F to 3212 °F

Data logger capacity: Save data: 256 samples with real-time data.
Data logger: 16 sets, Max 16000 data capacity.

NIST Certification available, please contact us for details (800) 922-0977.

Resources
Brochure
$640.00
