Item No: HSK28RSXDT

HSK28RSXDT Data Version Extruder


See all items from HSK
Product Description

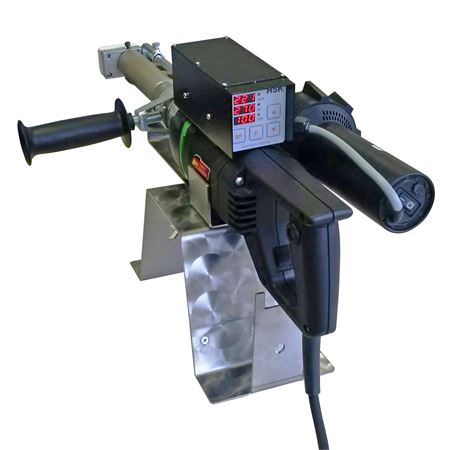

HSK28RSXDT Data Version Extruder

  • Extrusion welding from PE, PP, PVC* and PVDF
  • Temperature probe located in the melt chamber
  • Rod feeding with no additional gearing

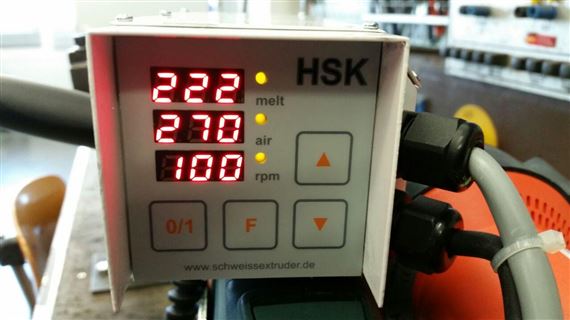

  • Control units for actual / desired mass and air temperature and actual speed

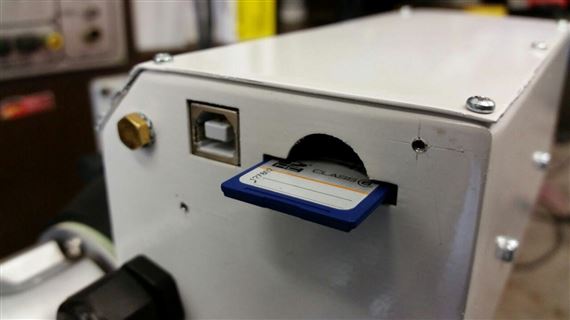

  • Digital recording of the welding temperature, ambient temperature, the speed and the welding times on SD Card
  • Various welder programmed with its own SD card
  • Pre-programmable welding and building materials on SD card
  • Evaluated logs and charts on Excel
  • Cold start protection
  • Rod diameter 3, 4 and 5 mm
  • One pce nozzle blank included *PVC with special screw
  • Speed control
 Price includes Case.
FOB CA

Specifications and additional product information
  • Welding rod ø 3 mm - 5 mm
  • Dimension (lxwxh) mm 450 x 75 x 240
  • Delivery rate 3.0 kg / h (with 4 mm PEHD welding wire)
  • Heating power extruder 700 W / air: 2,200 W
  • Power Drive 2000W
  • Plate thickness 6 - 30 mm
  • Weight 8.5 kg (19 lbs)
  • Air requirement for own air supply
  • Voltage 230 V 50/60 Hz or 120 V 50/60 Hz
