Product Description

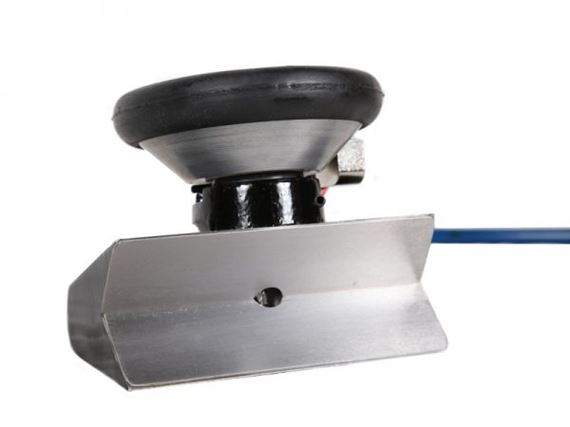

Turbo-Burr

One pass deburring and safety edging of plastics or sheet metal

  • Easily brought to the work site
  • For use as both a hand or as a bench-mounted tool
  • Breaks sharp edges on parts at mill, saw or shear

Perfect for deburring and edge finishing of

  • Plastics
  • Ferrous and non-ferrous metals
  • Stainless steel
  • Aluminum
  • Laminates
  • Printed circuit boards


  • Lightweight— only 3½ pounds
  • One pass deburring and safety edging of plastics or sheet metal
  • Light chamfering up to .075" depth of cut
  • High speed (55,000 rpm) produces clean, machined edges
  • Easily adjusted depth of cut
  • Handle features handy storage for cutters and wrenches

Turbo-Burr, Model S
With closed-bottom “V” block
Suitable for most applications

Turbo-Burr, Model R
With a small gap at the bottom of the V” block
Suitable for materials 0.135 inch and heavier,
where large burrs are present.



Cutters
Applications Reference Chart
Burr Pattern
Model SA-1 SA-1DC SA-1DIA SA-1NF
Description Spiral Cut Double Cut Diamond Cut Five Flute
Use and Finish Improved finishes Rapid removal, reduced finish Aggressive removal,
reduced finish
Rapid removal,
good finish
Aluminum X
Brass, Bronze, Copper X X
Carbon X
Circuit Board Connnectors X
Fiberglass X
Cast Iron X X X
Malleable Iron X X X X
Magnesium Alloys X X X
Masonite X X
Plastics X
Hard Rubber X
Steel - Carbon X X X X
Steel Alloy 40-55 Rc X X X X
Steel Alloy 55-60 Rc X X X X
Steel - Nickle Chrome X X X X
Stainless Steel X X X X
Steel - Weldments X X X X
Titanium X X X X
Zinc Alloy X



All Prices FOB MI

Specifications and additional product information
Rotation Speed 55,000 rpm (no load speed)
Air Consumption 5 to 11 cfm - lubrication not needed
Air Pressure 60 to 120 psig
Air Hose 1/4"
Minimum Material Thickness 0.015"
Collet 1/4" - compression type
Burr Type 1/4" dia. x 2" length overall - solid carbide
Depth of Bevel 0 to .075 inches at 45°
Feed Speeds up to 2 inches per second
Weight 3.5 pounds (1.6kg)
GridItemIDItem NoItem InformationPriceOrder Qty
104MODEL STurbo Burr
$479.00
Qty:
103MODEL RTurbo Burr
$479.00
Qty:
3485SA1Spiral cut Turbo Burr cutter
$15.95
Qty:
2325SA1DCDouble Cut Turbo Burr cutter
$15.95
Qty:
2326SA1DIADiamond Cut Turbo Burr Cutter
$16.95
Qty:
2327SA1NFFive flute Turbo Burr Cutter
$19.00
Qty:
