Product Description
Panel Saw, Dust Free Cutter Combo
Panel Saw and Dust Free Cutter Combo
Ideal Cutting Solution For: Corrugated Plastic, PVC, Foam board, Aluminum Composite Panel,
Aluminum Panel, Wood & MDF Panels, Polycarbonate, Veneer, Laminate, Acrylic, and More!
WINNER OF THE SGIA (Specialty Graphic Imaging Association)
PRODUCT OF THE YEAR 2018!

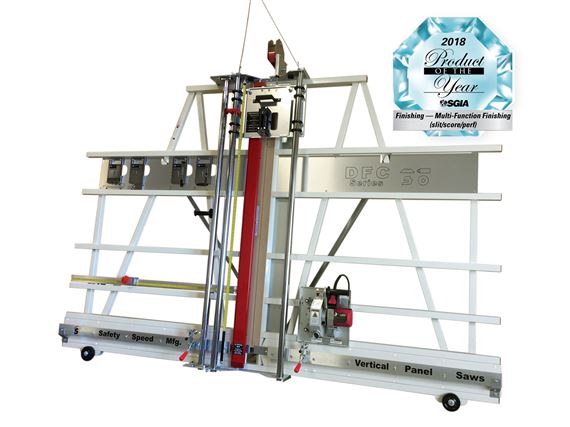

These revolutionary machines combine the rigid frame of the vertical
panel saw with a powerful motor and an interchangeable dust free
wall cutter assembly allowing sign shops to process virtually any sign
making material. Showcasing an interchangeable carriage that takes
up less space, cuts material up to 1 3/4” thick, cuts multiple sheets,
v-grooves and scores material, and rips sheets up to 10 feet all day
long.
Combine dust and noise free cutting with a Safety Speed Vertical
Panel Saw and you can cut just about any material straight and square
in your shop. Includes Dust Collection kit and 3.25 HP motor.
Max Cross Cut: 64". Optional vacuum available.
See our Optional Midway Fence for supporting narrow pieces (Under Related Items at right).
Substrate Cutter Standard Equipment
- ACM Cartridge
- Utility Blade Cartridge (15 heavy-duty blades included)
- Scoring Cartridge
- Integral Counter Weight
- Left and Right Tapes
- Removable Clamping Bar System
- Two Extra Bottom Clamps
Panel Saw Standard Equipment
- 3.25 Hp Motor
- Thin Material Pressure Guard
- Counter Balance
- Dust Collection Kit
- 1 ¾” Steel Guide Tubes
- Roller Bearing Systems
- Vertical & Horizontal Rulers
- QUICK STOP® Gauge 5ft
- Stand and Wheels
Blade and Backer board
