Item No: TADS503MT

Electrical scissors 120V 7 edge blade mold trimmer


Product Description

Electrical scissors 120V 7 edge blade mold trimmer

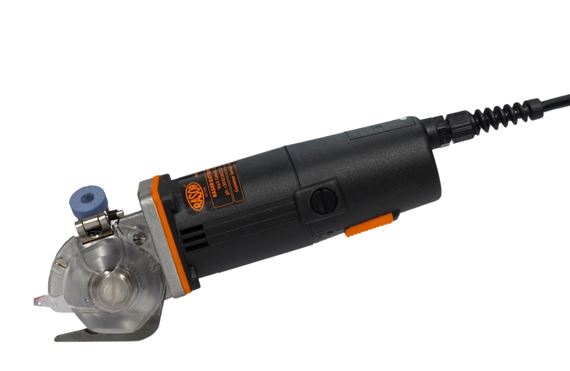

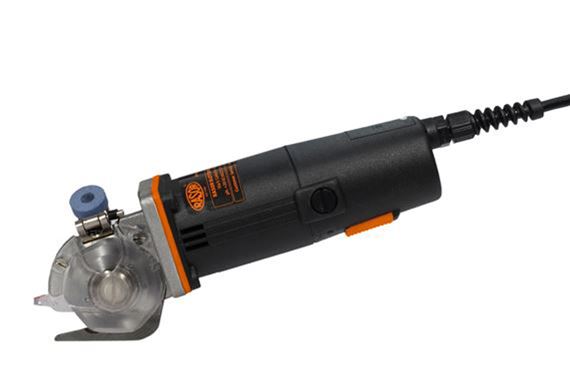

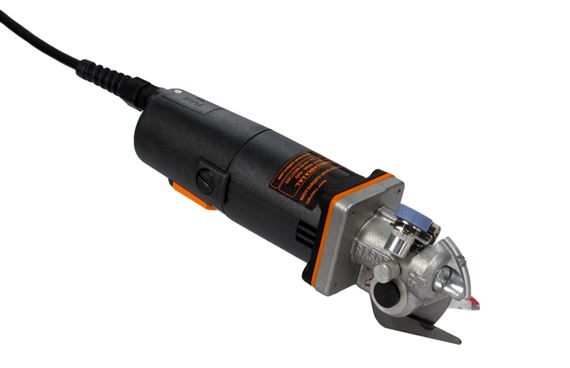

TADS503MT is the new electrical hand-held cutting machine designed for trimming the edges. The new slim shaped foot is welded with a counter blade to reduce the overall dimension of the shear. With TADS503MT is therefore possible to trim straight or curved sections of material with high precision. TADS503MT is well used for trimming textile and leather in furnishing field (chairs, sofa and armchairs) while especially used to cut away the extra-waste material on molds for plastic and glass fiber.

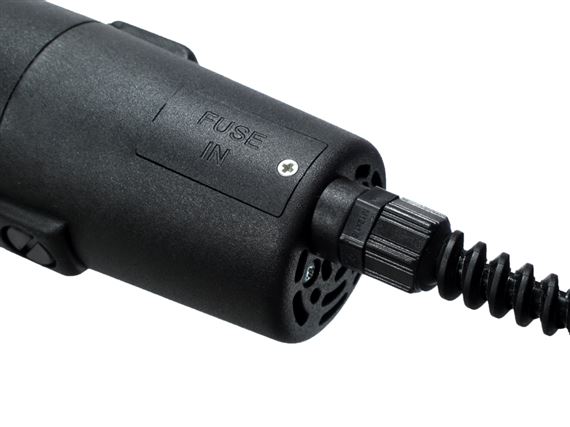

It weighs only 950 grams and its ergonomic design combined with a 55Watt balanced and silenced motor make this model (TADS503MT) a unique cutting tool very easy to be used. The maximum cutting thickness is 8mm and the new installed sharpening stone allows the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The new circuit board includes a glass fuse which can be easily replaced without disassembling the shear.

Specifications and additional product information
  • Blade diameter: 50 mm(1.96″), with welded hard metal counterblade
  • Blade: 50SEXT, 7-edges, EXTRA steel
  • Blade speed: 1500 r.p.m.
  • Cutting ability: 9 mm (0.35″)
  • Power: single phase – 55 W
  • Max absorption: 1 A, with protection fuse
  • Net weight (with power supply cord): 950 g
  • Total weight (with packaging): 1570 g
  • Electric cable lenght: 1.5 mt (extensible)
  • Minimum brightness for working operations: 200 LUX Vibrations at start up: < 2.5 m/sec 2
  • Temperature range: 0 – 55 C
  • Humidity range: 10 – 95% without condensate
