Product Description

Ion Air Gun

New rugged, ergonomic gun is the lightweight, effective spot cleaner!

The Model 8293 Ion Air Gun System neutralizes and cleans plastic parts prior to packaging

Applications
  • Pre-paint dust removal
  • Clean and neutralize three dimensional parts
  • Optics
  • Cleaning molded parts
  • Photofinishing
  • Lens cleaning
  • Furniture finishing
  • Package cleaning
  • Container neutralization
Advantages
  • Rugged, lightweight, easy to use
  • Rapid static decay
  • Low air consumption
  • Quiet
  • Effective up to 15 feet (4.6m)
  • Shockless, non-radioactive
  • Strong blowoff force and flow
  • Low maintenance
  • Meets OSHA pressure & noise level requirements

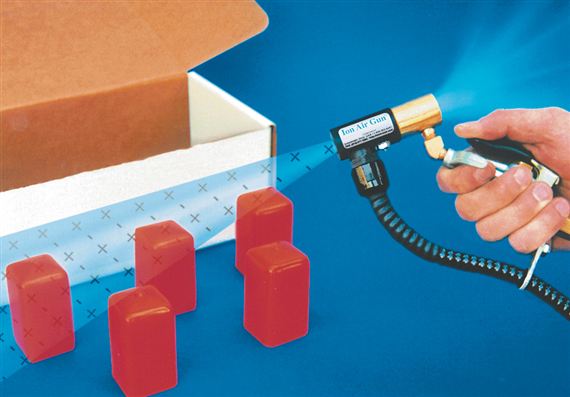

What is the Ion Air Gun?

This new Ion Air Gun combines incredibly fast static decay rates with low compressed air consumption. It is the ideal way to remove static, contaminants and dust from three dimensional parts prior to assembly, packaging, painting or finishing. The Ion Air Gun neutralizes static electricity and cleans at distances up to 15 feet (4.6m). Why the Ion Air Gun? The Ion Air Gun induces surrounding airflow through the gun at a ratio of 5:1, minimizing compressed air use and maximizing ionized airflow. The force can be adjusted from a “blast” to a “breeze”. A comfortable grip and hand position allow hours of continuous use without fatigue. The Ion Air Gun is quiet, lightweight and features a hanger hook for easy storage. The 10 foot (3m) shielded power cable is extremely flexible, designed for rugged industrial use.


Ion Air Gun

Model Description
EX8193 Ion Air Gun Only
Includes 10' shielded cable*
EX8293 Ion Air Gun and Power Supply
EX8493 Ion Air Gun Kit
Includes: Ion Air Gun, Power Supply, Air Filter & Regulator
EX7960 Power Supply Only
(115V, 50/60 Hz, 2 outlets) Output: 5 kVrms, 5 milliamperes maximum
EX7905 Static Meter
EX9001 Auto Drain Filter Separator
¼ NPT, 73 SUM (2067 SLPM)
EX9008 Pressure Regulator with Gauge
¼ NPT, 50 SCFM (1416 SLPM)
EX7192 ION Air Cannon
Includes: Amplifier, Emitter and Stand
*For special length cables, please call us

Specifications and additional product information
Specifications:
Compressed Air: ¼"NPT inlet provided
Materials of Construction:
Metal Parts: Brass, Zinc, & Stainless Steal
Plastic Parts: UL rated 94 HB
Emitter: Stainless Steal
Electrical: For use with 5 kVrms, 5 milliamperes (max) power supply, Model EX7960 (115V) or EX907 (230V). Power supplies are UL Listed, CSA Certified.
Electrical Hazard: Shockless (less than 40 microamperes short circutied). Do not use near flammable materials or gases.


Pressure
Supply
Air
Consumption
Sound
Level
Dissipates
5kV*
PSIG BAR SCFM SLPM dBA SECONDS
20 1.4 4.8 136 67 0.45
40 2.8 7.5 212 74 0.33
60 4.1 10.3 291 79 0.24
80 5.5 13 368 82 0.18
100 6.9 15.7 444 85 0.18
*6" (15 cm) from target
Resources
Brochure
Download the PDF brochure for more infoAll Static Products brochure 23 page
